PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel

Product Categories
LUXTRONIC LIGHTING LIMITED
Contact Now

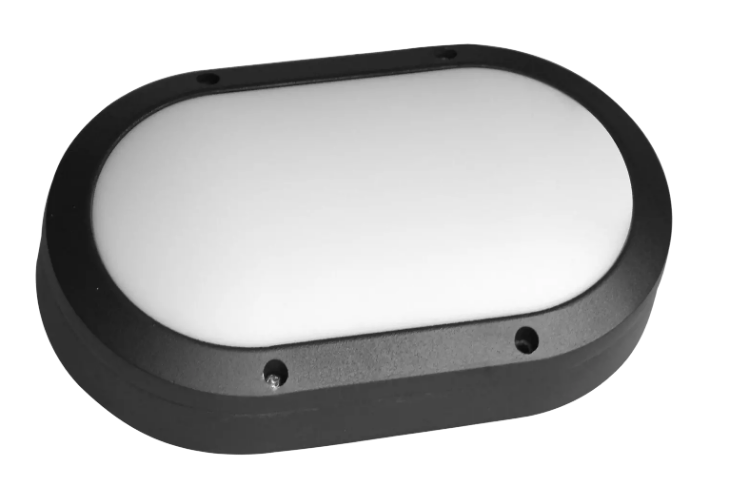

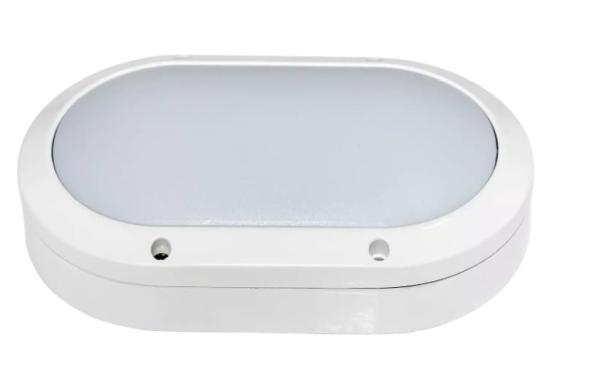

PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel

  • 1
  • 2

Brand Name : LUXTRONIC

Model Number : BK-15W-A

Certification : IEC/CE/ROHS

Place of Origin : China

Description : LED Bulkhead light

Model : BK-15W-A

Power : 15w

Voltages : 100-240vac

Lumens Flux : 80lm/w

CCT : 3000K/4000K/6000K

RA : 80

PF : 0.95

Working Temperature : -20/+45℃

IP Rate : IP65

Beam Angle : 120°

Materials : casting Alum. + PC cover

Price : Negotiable

Contact Now

10W 15W 20W Outdoor IP65 LED bulkhead light weatherproof ceiling mounted for Hotel

Lamp Material:

Die-casting aluminum base, excellent heat dissipation.

PC housing, high impact resistance.

304 Stainless steel hexagon socket head cap screws.

waterproof gasket to prevent water into the lamp

Chip, Driver, Glow wire

We use Taiwan high lumens Epistar Chip,900LM,CRI> 80
High quality driver, CE RoHS approval, PF> 0.9, no flicker, IP65

SDCM value of the led that we use (Mac Adam Ellips - binning) <3 or 5
Temperature test is 47-49 degree
Glow wire test at 850 ℃ pass NF EN 60695-2-1,VDE approval

PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel

PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel

Model BK-15W-A
Power 15 Watt
Luminous Flux 1200Lm
Luminous efficiency 80LM/W
LED Chip Epistar leds
Input Voltage AC100-277V/50-60 Hz
Output Voltage 30-36V
Lighting Angle 120°
Material Aluminum housing + PC cover
Color Rendering Index Ra>80
Power Factor > 0.95
Environment Temperature -20/+45℃
IP Rating IP65
Color Temperature 3000K/4000K/6500K
Product size 275*275*80mm
Inner box size 285*285*100mm
Carton size(5pcs) 470*320*320mm
N.W/G.W 1.6KG/9.0KG
Certification CE RoHS SAA IP65 IK10

Application:

Widly use in Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel,Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store.

PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel

PC Housing Outdoor LED Bulkhead 10W 15W 20W High Impact Resistance For Hotel
